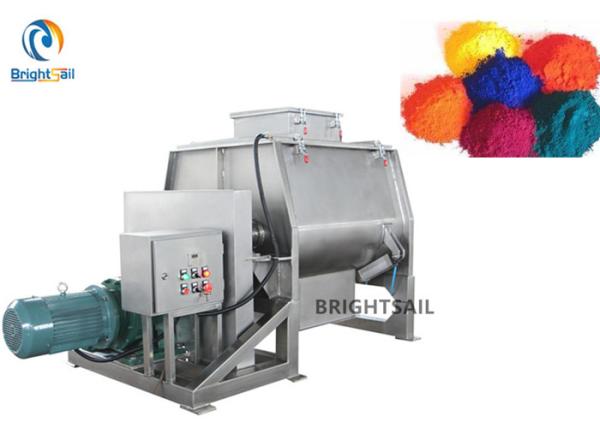

Industry cement blender mixer machine pigment paint powder paddle
mixer machine
Our BSLdouble shaft paddle mixer is a new type of high homogeneity mixer which makes material
weightless during mixing.It is widely used in heavy bulk density,
high viscosity material such as dry mortar, metal, rubber, mining,
plastic, chemical, Metallurgy industry and to meet highest
homogeneity.
Working method:
Double shaft paddle mixer is with 2 horizontal paddle shaft; there
is the paddle on each shaft.With the driven equipment, two cross
paddle shafts moves intersection and patho-occlusion. Driven
equipment makes paddle rotating fast; the rotating paddle generates
centrifugal force during high speed rotation, spilling the material
to the upper part in the barrel, then material falling down (the
vertex of material is in a so-called instant non-gravity state).
Driven by the blades, material is mixed back and forth; also
sheared and separated by the meshing space between the twin shafts;
fast and evenly mixed.
Main features:
1. The production efficiency is high, the mixing time is short, and
the power consumption of tonnage is small.
2. It is not easy to produce segregation when mixing materials with
different physical properties such as specific gravity, particle
size and shape.
3. Bottom open door technology, quick discharge and the residue is
very low.
4. Equipped with safety interlocking device to protect personal
safety
5. Carbon steel, stainless steel and other different materials can
be selected.
6. Flexible body to open the door,the door-sealing,to ensure that
materials are not leaking.
7. It is widely used in feed, additives, chemical, pharmaceutical,
pesticide, dyestuff and food industries.
Packing and shipping:
1. We provide shipping methods:Courier service,Air transport,Sea
Transport
2. Can accept order:Full container cargo load,Less container load
3. Delivery term :EXW,FOB,CIF,CNF etc.
We always choose the most economical and reliable shipping company
to make sure you receive the goods in time. The BL and tracking
number will be provided to you once the consignment is shipped.
Technical data:
Model | Work volume | Speed (rpm) | Motor power(KW) | Overall size (L*W*H) (mm) | Weight (kg) | Output size (mm) |
BSL-100 | 60L | 2*57 | 3 | 1320(L)*700(W)*700(H) | 320 | 2*200*50 |
BSL-300 | 180L | 2*57 | 5.5 | 1242(L)*1278(W)*1025(H) | 750 | 2*250*60 |
BSL-500 | 300L | 2*51 | 7.5 | 1412(L)*1410(W)*1230(H) | 1000 | 2*300*80 |
BSL-1000 | 600L | 2*43 | 15 | 1875(L)*1610(W)*1350(H) | 1550 | 2*350*120 |
BSL-2000 | 1200L | 2*43 | 18.5 | 2312(L)*2160(W)*1775(H) | 2500 | 2*350*120 |
BSL-3000 | 1800L | 2*36 | 22 | 2408(L)*2400(W)*1955(H) | 2900 | 2*350*120 |
BSL-4000 | 2400L | 2*36 | 30 | 2822(L)*2546(W)*2015(H) | 3600 | 2*360*140 |
BSL-6000 | 3600L | 2*29 | 45 | 3075(L)*2980(W)*2235(H) | 5600 | 2*700*140 |
BSL-8000 | 4800L | 2*29 | 55 | 3278(L)*3426(W)*2425(H) | 7100 | 2*700*140 |
BSL-10000 | 6000L | 2*29 | 75 | 3538(L)*3645(W)*2615(H) | 8000 | 2*800*140 |
